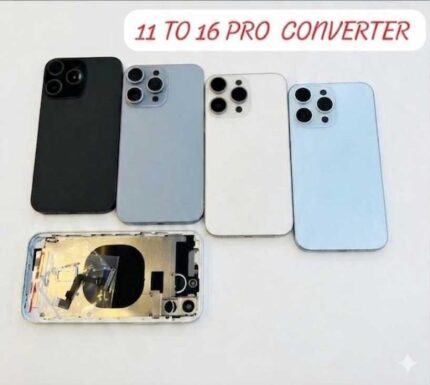

Body housing converter For iphone 11 to 16 pro back body housing converter

11 to 16 pro body converter

An iPhone 11 to iPhone 16 Pro Body Converter (often called a conversion chassis or housing kit) is a custom-engineered aftermarket replacement frame. It allows you to completely transform the external appearance of an older iPhone 11 to look exactly like a modern iPhone 16 Pro, featuring flat edges and a triple-camera module layout.

1. What Exactly is a Body Converter?

Unlike a cheap clip-on plastic case, a full body converter is a structural replacement housing.

To use it, a technician must completely strip down your current iPhone 11, removing the display, logic board, battery, Taptic Engine, and wireless charging coils, and reinstall those exact internal components into the new 16 Pro-styled chassis.

Structural Conversion Housing (External vs Internal Layout), AI generated

Structural Conversion Housing (External vs Internal Layout). Source: Zeespares.in

2. Key Features & Visual Changes

Flat-Edge Design: Replaces the curved, polished stainless steel edges of the iPhone 11 with the sharp, flat-edged matte aluminum or steel aesthetic introduced in modern iPhones.

Pro Camera Look: The back glass features an enlarged square camera bump housing three lens cutouts instead of the iPhone 11 vertical dual-camera pill shape.

Matte Frosted Glass Back: Swaps out the glossy back glass of the iPhone 11 for the premium frosted matte finish characteristic of the Pro series.

Repositioned Elements: The power button, volume keys, and SIM tray are precisely aligned on the exterior to mimic the 16 Pro layout, while internally remaining compatible with the iPhone 11 motherboard screw points.

3. How the Camera and Flash Work

Because the iPhone 11 only has two functional camera lenses (Wide and Telephoto) and the iPhone 16 Pro features three massive lenses plus a LiDAR sensor, the kit handles this layout creatively:

Exterior 16 Pro Feature What It Actually Connects To Inside Status

Top Left Lens iPhone 11 Main Wide Camera Active

Bottom Left Lens iPhone 11 Telephoto Camera Active

Right Side Lens Dummy Glass Lens / Empty Space Decorative Only

LiDAR Sensor Circle Black Plastic / Dark Glass Insert Decorative Only

True Tone Flash Custom Flex Cable Extension (included in kit) Active

Note on the Flash: The conversion kit includes a special extension ribbon cable. Since the original flash location changes, this cable extends the motherboard connection to position the working LED light right into the correct spot on the new 16 Pro camera bump.

4. Crucial Realities to Keep in Mind

Before buying a kit or taking your phone to a repair market, there are several distinct compromises to consider:

The Front Notch Stays the Same: This body kit only changes the back and sides of the phone. When the screen turns on, you will still see the wider, original iPhone 11 notch rather than the narrower 16 Pro notch.

Case and Screen Protector Compatibility: Because the screen size and dimensions match the original 6.1-inch display of the iPhone 11, you must continue using iPhone 11 screen protectors. However, standard iPhone 16 Pro cases usually will not fit perfectly because the internal thickness and port alignment differ slightly from an authentic 16 Pro.

Loss of Factory Waterproofing: Once a phone is completely dismantled and rebuilt in a third-party housing, the factory-sealed water and dust resistance (IP67) is lost.

Complex Installation: This is a highly technical, zero-mistake procedure. It involves transferring highly fragile parts like the Face ID sensor array, which can easily break if handled incorrectly, permanently disabling facial recognition. Professional installation by an experienced technician is highly recommended.
